Andersen · E-Series

Andersen E-Series Double-Hung Windows

The classic double-hung, fully customized: two operating sash, cottage or arch-top shapes, ten interior woods and fifty aluminum-clad exterior colors.

Made in the USA ENERGY STAR® certified Owner-2-Owner® warranty

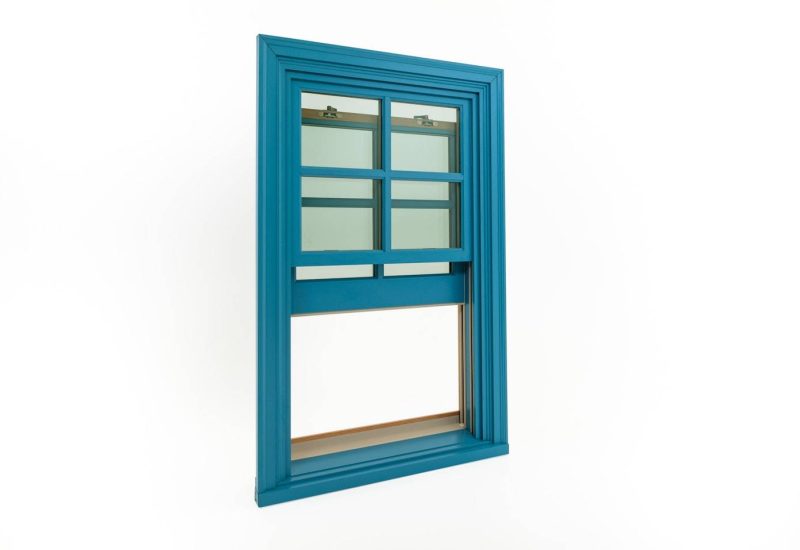

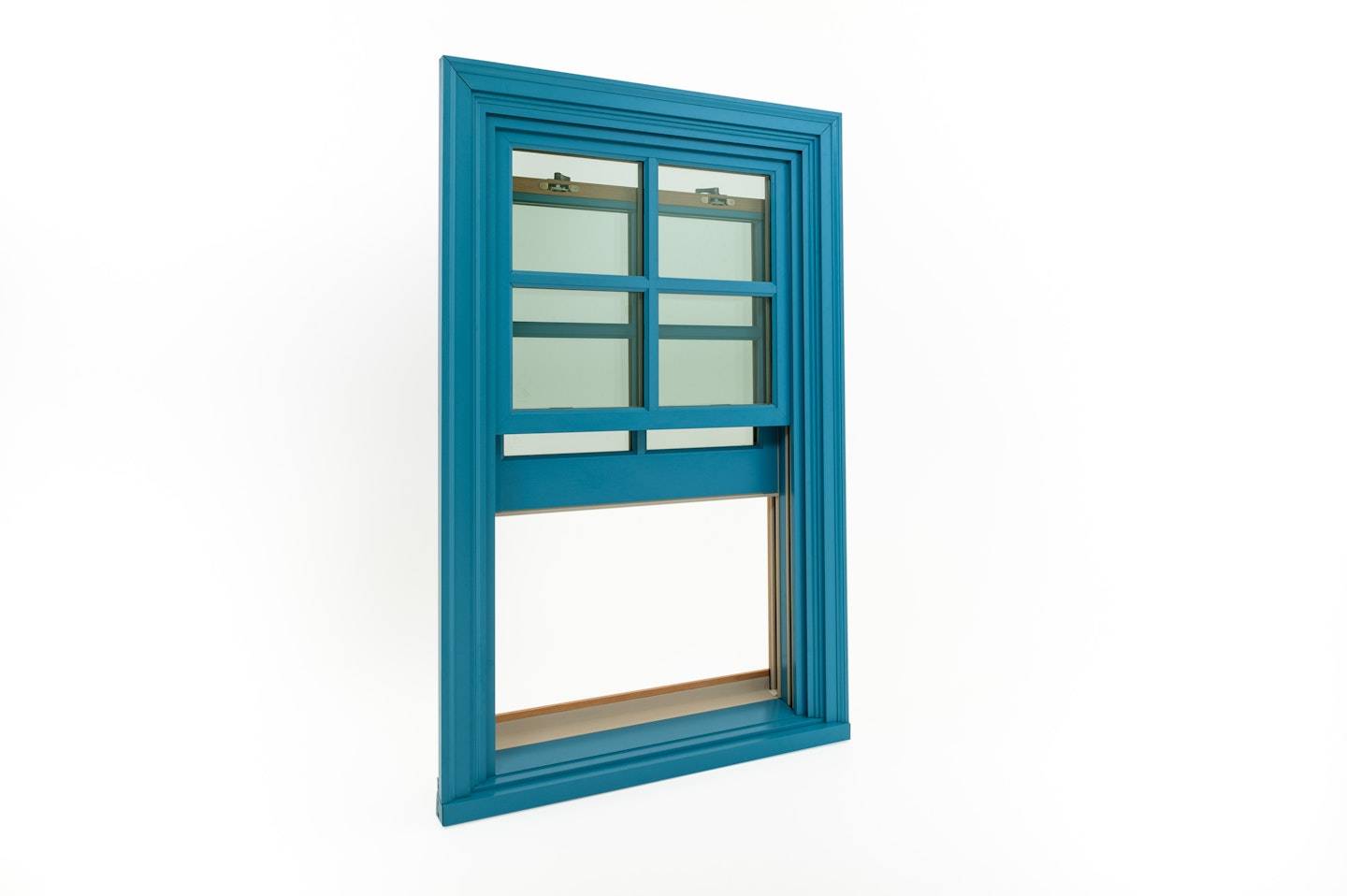

E-Series Double-Hung Windows — andersen e series aluminum clad wood double hung window

Overview

Why choose the E-Series Double-Hung Windows?

Looking for a double-hung window with no compromises? The E-Series is available in custom colors, interior woods and factory stains, with both sash operating and tilting inward for cleaning. It is the choice for historic districts and custom homes where proportions matter: cottage and reverse-cottage sash, arch-top units and sizes up to 10′ tall are all standard capabilities, and the extruded aluminum exterior is designed to last.

Features at a glance

  • Two operable sash for ventilation at the top, bottom or both
  • Interior wood frame with extruded aluminum cladding that resists water and seals out the elements
  • Cottage, reverse-cottage, rectangular and arch-top sash options
  • Ten hardware finishes; Verilock® security sensors available
  • Sizes from 20" to 60" wide and 36" to 120" high in ⅛" increments
  • Owner-2-Owner® limited warranty; Made in the USA; ENERGY STAR® certified

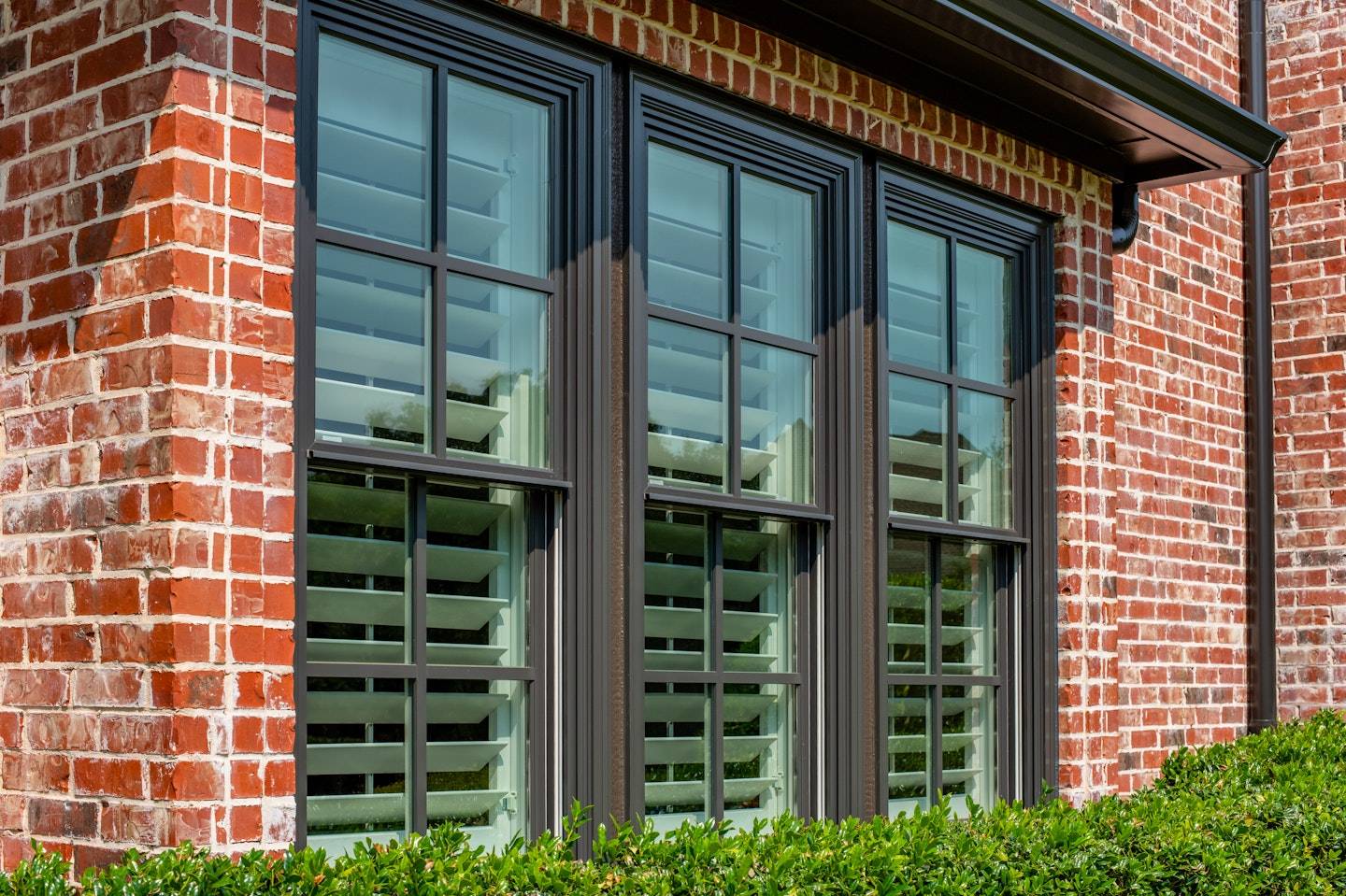

E-Series Double-Hung Windows — three wide double hung windows

Options

Customize your E-Series Double-Hung Windows

Every window is built to order. Pick the combination that fits your home and we’ll confirm availability, pricing and lead time at your free consultation.

Exterior colors are factory-finished and warranted against peeling, blistering and fading; interior finishes can be matched to your trim and cabinetry. Ask us for physical samples rather than relying on a screen.

Interior Wood Options (Available Unfinished or Stained)

Pine
Pine
Maple
Maple
Oak
Oak
Cherry
Cherry
Mahogany
Mahogany
Alder
Alder
Walnut
Walnut
Hickory
Hickory

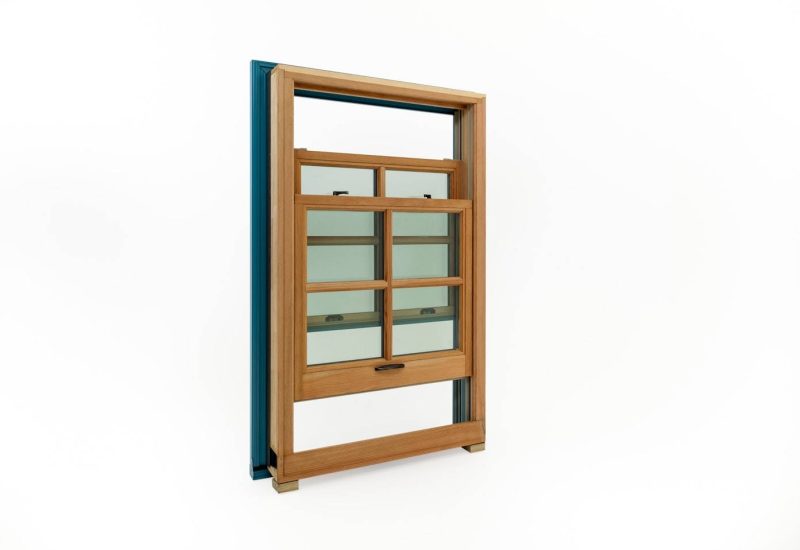

Vertical Grain Douglas Fir
Vertical Grain Douglas Fir
Mixed Grain Douglas Fir
Mixed Grain Douglas Fir
Custom
Custom
White Oak
White Oak

Painted Interiors

White
Birch Bark
Primed
Canvas
Sandtone
Terratone
Forest Green
Dark Bronze
Black
Cocoa Bean
Red Rock
Prairie Grass
Dove Gray
Options chart

Exterior Color

Options chart
Options chart
Options chart
Options chart

Hardware finishes are chosen to match door levers, cabinet pulls and lighting so the window disappears into the room.

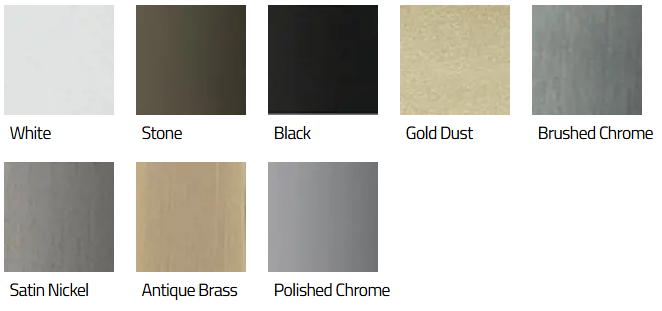

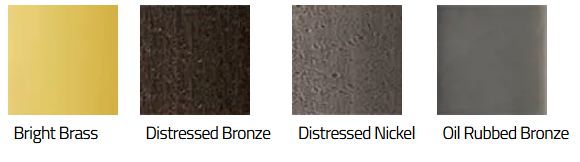

Hardware Colors

Options chart
Options chart

Hardware Styles

Lock and Keeper
Lock and KeeperAntique Brass, Black, Bright Chrome, Oil Rubbed Bronze, Satin Chrome, Pewter, White, Polished Brass, Gold, Bronze
Sash Lift
Sash Lift

Grilles add architectural character and can be matched to the style of your home. Choose the grille construction first, then the pattern.

Grille Types

Full Divided Light
Full Divided LightGrilles applied to the interior and exterior of the window with aluminum spacers between the glass create an authentic look.
Simulated Divided Light
Simulated Divided LightAn economical solution with traditional beauty, Andersen’s Simulated Divided Light features fixed exterior and interior grilles without an internal spacer.
Removable Interior Wood Grilles
Removable Interior Wood GrillesAndersen’s removable wood grilles are installed on the interior surface. They are available with an optional surround and an optional permanently applied exterior grille.
Finelight™ Grilles- Between-the-Glass
Finelight™ Grilles- Between-the-GlassAluminum grilles sit between two panes of glass for easy cleaning.

Grille Profiles

Interior Wood: Ovolo (Colonial)

Widths: 5/8″ · 7/8″ · 1 1/8″ · 1 1/2″ · 2 1/4″

Available with: Full Divided Light · Simulated Divided Light

Exterior Aluminum: Chamfer

Widths: 5/8″ · 7/8″ · 1 1/8″ · 1 1/2″ · 2 1/4″

Available with: Full Divided Light · Simulated Divided Light · Removable Interior Wood with Optional Permanently Applied Exterior Grille

Removable Interior Wood Grilles

Ovolo or Contemporary profiles in 7/8″ width

Interior Wood: Contemporary

Widths: 5/8″ · 7/8″ · 1 1/8″ · 1 1/2″ · 2 1/4″

Available with: Full Divided Light · Simulated Divided Light

Exterior Aluminum: Contemporary

Widths: 5/8″ · 7/8″ · 1 1/8″ · 1 1/2″ · 2 1/4″

Available with: Full Divided Light · Simulated Divided Light · Removable Interior Wood with Optional Permanently Applied Exterior Grille

Finelight Grille Profiles and Widths

Flat or Contoured profiles in 5/8″ or 1″ widths

Grille patterns

Prairie
Prairie
Prairie (Top Sash Only)
Prairie (Top Sash Only)
Diamond
Diamond
Diamond (Top Sash Only)
Diamond (Top Sash Only)

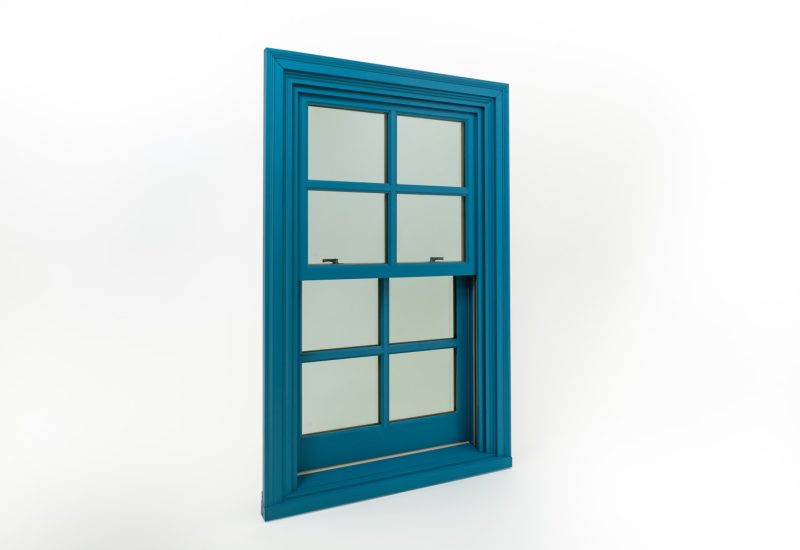

Colonial
Colonial
Colonial (Top Sash Only)
Colonial (Top Sash Only)
Specified Equal Light
Specified Equal Light
Custom Patterns
Custom Patterns

Every Andersen E-Series unit can be ordered with the glass package that fits its exposure. All options are ENERGY STAR® certified configurations; ask us about impact-rated glass for coastal wind zones.

Glass

SmartSun™ Glass
SmartSun™ GlassSmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun’s heat by filtering out harmful UV rays. Ideal for: All Climates SmartSun™ with HeatLock Coating is also available on 100 Series windows. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.
Low-E Glass
Low-E GlassLow-E Glass reflects heat in the summer and helps to retain interior heat in the winter. Low-E with HeatLock Coating is also available on 100 Series windows. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.
Sun Glass
Sun GlassSun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun. Ideal for: Southern Climates
Clear Dual-Pane Glass
Clear Dual-Pane GlassClear dual-pane glass, which offers basic thermal performance, is in situations where codes allow its use. In North Texas, clear-dual pane glass does not meet energy code. See local code official for requirements in your area.
HeatLock® Technology
HeatLock® TechnologyHeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen’s glass options.

Decorative and Specialty Glass

Safety GlassTempered safety glass is available on all products, and comes standard on all patio doors.

Laminated GlassLaminated glass is also available, for added strength, enhanced security and sound control.

Sound-Reducing GlassThis glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.

Patterned GlassLet in light while obscuring vision and adding a unique decorative touch to your home.

Options chart

Art Glass

Classic Series
Classic SeriesThe four styles included in our Classic Series panels represent major architectural design themes from the late 1800’s through the 1930’s. Their symmetric patterns are available in distinctive color schemes as well as colorless glass, and their caming may be finished with a gold tone, silver tone or antique patina.
Artisan Series
Artisan SeriesTwo designs influenced by 20th century American and European architectural schools feature striking visual patterns that evoke an extraordinary blend of art and nature.
Historic Series
Historic Series

Sash proportions and shapes keep period homes period-correct.

Sash Options

Cottage Style
Cottage StyleCottage sash are based on a 2:3 ratio.
Reverse Cottage Style
Reverse Cottage StyleReverse cottage sash are based on a 3:2 ratio.

Shapes

Rectangle Double-Hung

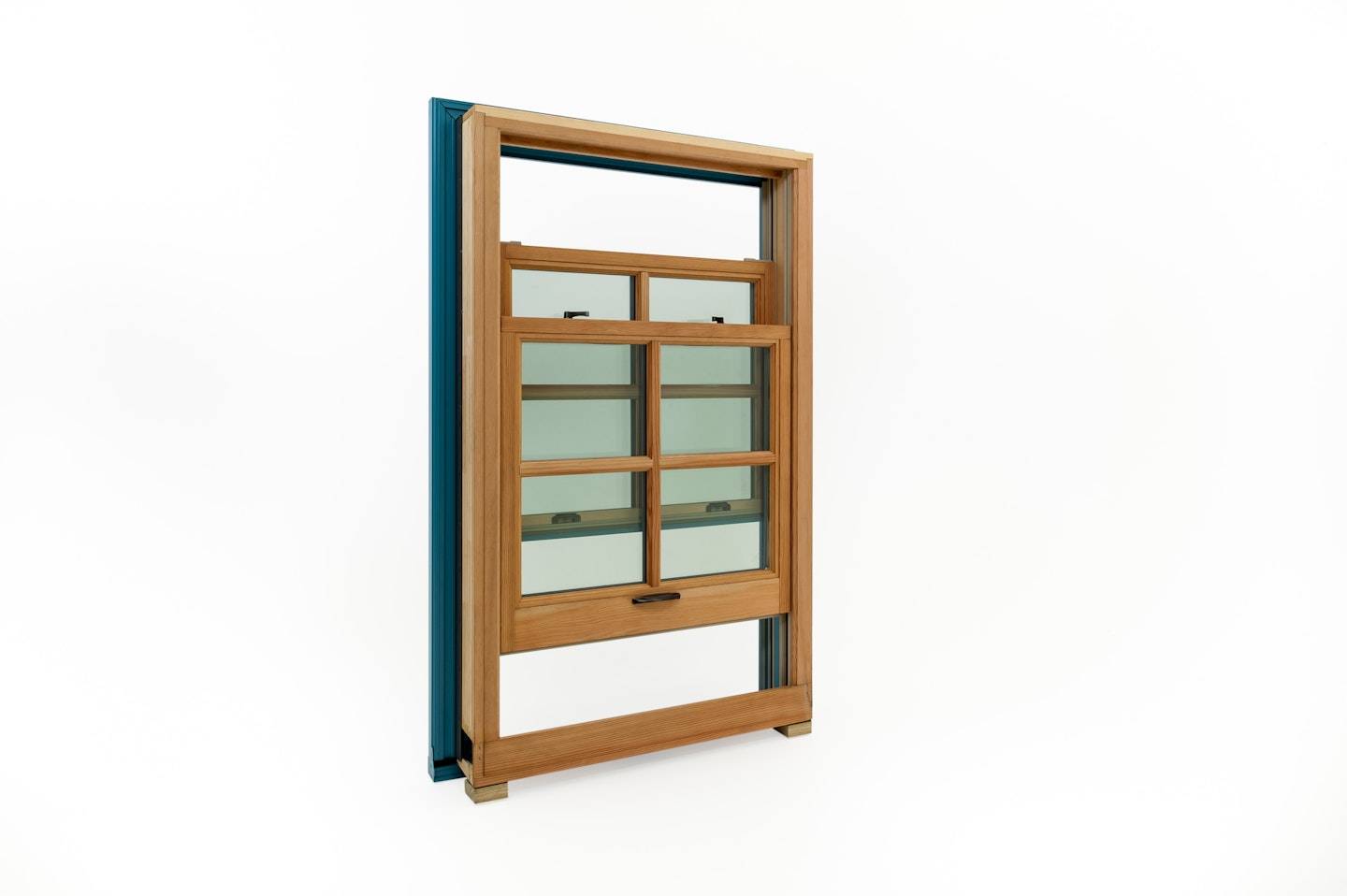

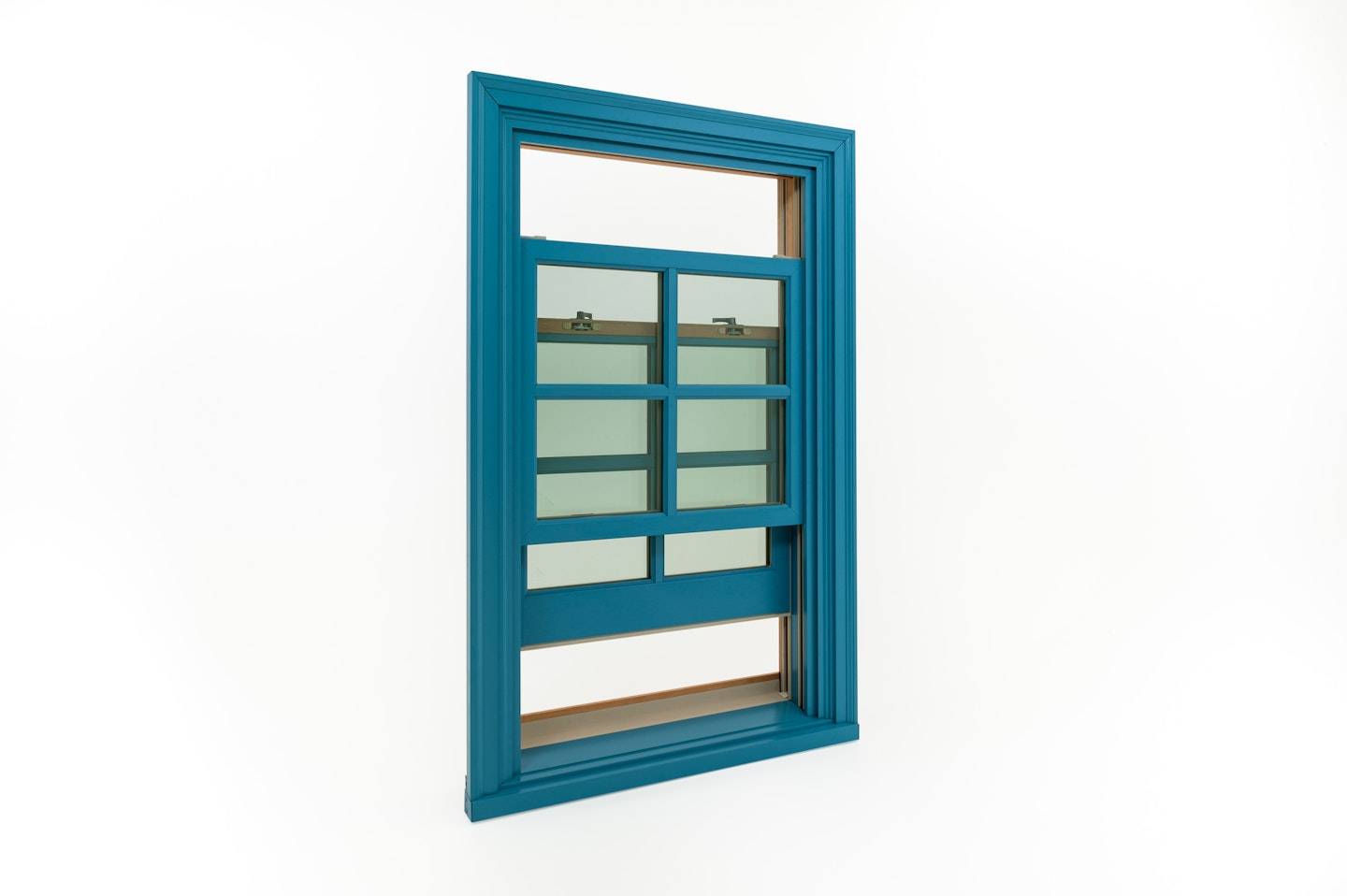

Rectangle Double-HungBoth sash operate up and down and tilt inward for cleaning.
Arch Double-Hung
Arch Double-HungBottom sash operates up and down and tilts inward for cleaning. Top sash is fixed.

Factory-applied trim completes the look and is often essential for authentic architectural style. Match your window color or choose a contrasting trim.

Interior Trim

Wood Casings
Wood CasingsA subtle touch around the perfect window or door makes your view even more special. Shown above, from top to bottom: ½” and 3 ¼” Fluted Casing 11/16″ and 2 ¼” Colonial Casing (WM366) 11/16″ and 2 ¼” Colonial Casing (WM356) 11/16″ and 2 ¼” Ranch Casing (WM324)
Plinth Blocks
Plinth BlocksAdd plinth blocks at the corners for just the right touch of detail. 2 ½” and 3 ½” plinth blocks shown

Exterior Trim

2-, 3- & 4-Tone Exteriors
2-, 3- & 4-Tone ExteriorsWith our 2-, 3- and 4-tone color combinations, the sky’s the limit. Mix and match up to four of our 50 exterior colors for a combination look that’s all your own.
2” brick mould and 1 ½” sill nose shown on casement.
2” brick mould and 1 ½” sill nose shown on casement.
3 ½” backband & bead casing and 1 ½” sill nose shown on double-hung.
3 ½” backband & bead casing and 1 ½” sill nose shown on double-hung.
5 ½” flat casing and 1 ½” sill nose shown on casement.
5 ½” flat casing and 1 ½” sill nose shown on casement.
2” ovolo brick mould and 1 ½” deep sill nose shown on double-hung.
2” ovolo brick mould and 1 ½” deep sill nose shown on double-hung.
3 ½” brick mould and 1 ½” deep sill nose shown on double-hung.
3 ½” brick mould and 1 ½” deep sill nose shown on double-hung.

Specifications

Product specs

Brand Andersen
Series E-Series
Window style Double-hung
Exterior Color 50 Exterior Colors and 7 Anodized Finishes with Custom Color-Match Capabilities
2-, 3-, & 4-Tone Exteriors Yes
Composition Wood, Aluminum
Custom Wood Interiors Pine, Oak, Walnut, Hickory, Vertical Grain Douglas Fir, Mixed Grain Douglas Fir, Maple, Alder, Mahogany, Cherry
Interior Finish Clear Coat, Autumn Oak, Honey, Russet, Espresso, Birch Bark Basecoat, Wheat, Golden Hickory, Cinnamon, Mocha, White Basecoat, Primed
Uniform Sight Lines Yes
Extension Jamb Pre-installed, dimensional extension jambs available in all wood species.
Security Sensors Yes. Verilock sensors are available in five colors. Wireless open/closed sensors are available in four colors.
Construction Type Build, Remodel, Replace
Custom Sizes Yes, Available in custom sizes to fit most projects, including replacement.
Sizing Measured in 1/8″ increments.
Minimum Width 20″
Maximum Width 60″
Minimum Height 36″
Maximum Height 120″
Jamb Depth 5 5/8″
Flange Setback 1 1/16″
Sash Construction A single layer of compression bulb weather strip is applied for a maximum weather seal.
Power Operator Available No
Energy Star Certification Yes
NFRC Ratings Yes
WDMA Hallmark Certification Yes
AAMA Certification Yes
Glass Warranty 20 Years
Glass Breakage Warranty No
Non-Glass Warranty 10 Years
Labor Warranty No
Window Opening Control Device Yes
Retractable Insect Screen No
