Andersen® Woodwright® double-hung windows combine the beauty of classic wood windows with modern technology. These windows are built to last.
Woodwright windows are built with Easy Tilt-Release locks making cleaning and maintenance easier. Perma-Shield exteriors are designed to resist peeling, blistering, flaking, and corrosion.
- Vinyl exterior provides added protection to the wood frame
- Standard Sizes: Available up to 3'10-1/8" wide and 6'4-7/8" high
- Owner-2-Owner Limited Warranty Windows Made in the USA
- Frame exterior resists dents and repels water
- Custom Sizes: Available in 1/8" increments
Interior Wood (Available Unfinished or Finished)
Exterior Color
Sandtone
Dark Bronze
Black

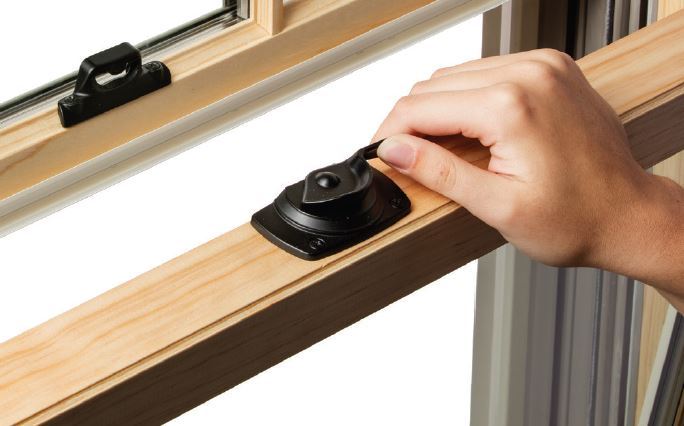

Easy Tilt-Release Lock System
Cleaning your window is easier with easy tilt-release technology. All you do is push your thumb forward and the window tilts inward.
Hardware Colors
Hardware Styles
Standard Lock & Keeper
Black, Gold Dust, Stone, White
Additional Options
Optional Lift Hardware: Traditional
Antique Brass, Black, Bright Brass, Brushed Chrome, Distressed Bronze, Distressed Nickel, Gold Dust, Oil Rubbed Bronze, Polished Chrome, Satin Nickel, Stone, White
Optional Lift Hardware: Contemporary Bar Lift
Antique Brass, Black, Bright Brass, Brushed Chrome, Distressed Bronze, Distressed Nickel, Gold Dust, Oil Rubbed Bronze, Polished Chrome, Satin Nickel, Stone, White
Optional Lift Hardware: Classic Series
White, Stone
Estate Lifts
Antique Brass, Bright Brass, Brushed Chrome, Distressed Bronze, Distressed Nickel, Oil Rubbed Bronze, Polished Chrome, Satin Nickel
Opening Control Device
Window Opening Control Device Kits limit opening the sash to less than 4" (102mm) when the window is first opened.
Grille Types
Full Divided Light
Grilles applied to the interior and exterior of the window with aluminum spacers between the glass create an authentic look.
Spacer Option for Greater Energy Efficiency
The Energy Spacer option is available to help A-Series products with full divided lights and SmartSun™ glass be ENERGY STAR® certified in the Northern climate zone. Its narrow design creates a 3mm gap around the spacer, helping to lower U-Factor values.
Simulated Divided Light
Style your window with permanent exterior grilles and choose between permanent or removable interior grilles.
Removable Interior Grille
For easy cleaning choose removable interior grilles. Secured via a fastener or grille clip, these can be removed easily.
Finelight Grilles Between-the-Glass
Grilles sit between the panes of glass for easy cleaning.
Grille Patterns
Prairie
Prairie (Top Sash Only)
Diamond
Diamond (Top Sash Only)
Colonial
Colonial (Top Sash Only)
Specified Equal Light
Custom Patterns
Specified Equal Light
Specify number of same-size rectangles across or down.
Custom Patterns
Andersen gives you complete flexibility to design your own custom grille style. You sketch it, our craftsmen will create it.
Glass
SmartSun™ Glass
SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun’s heat by filtering out harmful UV rays.
Ideal for: All Climates
SmartSun™ with HeatLock Coating is also available on 100 Series windows. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.
Low-E Glass
Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.
Ideal for: All Climates
Low-E with HeatLock Coating is also available on 100 Series windows. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.
Sun Glass
Sun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun.
Ideal for: Southern Climates
Clear Dual-Pane Glass
Clear dual-pane glass, which offers basic thermal performance, is in situations where codes allow its use. In North Texas, clear-dual pane glass does not meet energy code.
See local code official for requirements in your area.
HeatLock® Technology
HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen’s glass options.
Decorative and Specialty Glass
Safety Glass
Tempered safety glass is available on all products, and comes standard on all patio doors.
Laminated Glass
Laminated glass is also available, for added strength, enhanced security and sound control.
Sound-Reducing Glass
This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.
Patterned Glass
Let in light while obscuring vision and adding a unique decorative touch to your home.
Art Glass
Classic Series
The four styles included in our Classic Series panels represent major architectural design themes from the late 1800’s through the 1930’s. Their symmetric patterns are available in distinctive color schemes as well as colorless glass, and their caming may be finished with a gold tone, silver tone or antique patina.
Artisan Series
Historic Series
Screen Options
Insect Screens
Choose full insect screen or half insect screen. Half insect screen (pictured) allows ventilation without affecting the view through the upper sash. Frames are available in colors to match product exteriors.
Conventional insect screens have charcoal powder-coated aluminum screen mesh.
TruScene® Insect Screen
Exclusive Andersen TruScene® insect screens provide over 50% more clarity than our conventional insect screens for a beautiful unobstructed view. They allow more fresh air and sunlight in, while doing a better job of keeping out small insects. For casement and awning windows, frames are available in White, Stone or Gold Dust as well as all interior painted options, six wood veneers and six stain colors to match the interior finish.
Exterior Trim
Exterior trim adds a finishing touch to your windows or doors and is often essential in achieving authentic architectural style. You can match the color of your windows or doors, or complement them with a different color.
Trim Colors
White
Canvas
Sandtone
Terratone
Forest Green
Dark Bronze
Black
Cocoa Bean
Red Rock
Prairie Grass
Dove Gray
Trim Styles
2" Brick Mould
3.5" Flat
4.5" Flat
Head Trim Profiles
Decorative Drip Cap
2" Cornice
3 5/8" Cornice
Cottage Style
Cottage sash are based on a 2:3 ratio.
Reverse Cottage Style
Reverse cottage sash are based on a 3:2 ratio.
Shapes
Rectangular Double-Hung
Arch Double-Hung
Springline™ Single-Hung
Unequal Leg Arch Double-Hung
As soon as we finished the installation of our Andersen 400 Series we noticed an instant difference in the cooling of our home. Also the outside noise was significantly reduced. My wife and I truly enjoy our new windows.
— MRD57, Review from AndersenWindows.com
Product Specs
| Brand | Andersen |
|---|---|
| Series | 400-Series |
| Interior Color | Maple, Oak, Pine, White |
| Exterior Color | White, Canvas, Sandtone, Terratone, Forest Green, Dark Bronze, Black |
| Composition | Wood, Fibrex |
| Uniform Sight Lines | Yes |
| Extension Jambs | Available in unfinished pine or prefinished white |
| Translucent Film | Yes |
| Construction Type | Build, Remodel, Replace |
| Custom Sizes | Yes. Available in custom sizes to fit most projects, including replacement. |
|---|---|
| Sizing | Measured in 1/8″ increments |
| Minimum Width | 16 1/2″ |
| Maximum Width | 45 5/8″ |
| Minimum Height | 32″ |
| Maximum Height | 76 7/8″ |
| Jamb Depth | 4 1/2″ |
| Security Sensors | Yes. Wireless open/closed sensors are available in four colors. |
| Energy Star Certification | Yes |
|---|---|
| NFRC Ratings | Yes |
| WDMA Hallmark Certification | Yes |
| AAMA Certification | Yes |
| Glass Warranty | 20 Years |
| Glass-Breakage Warranty | No |
| Non-Glass Warranty | 10 Years |
| Labor Warranty | No |
| Window Opening Control Device | Yes |
| Stormwatch Protection Available | Yes |
| Power Operator Available | No |
