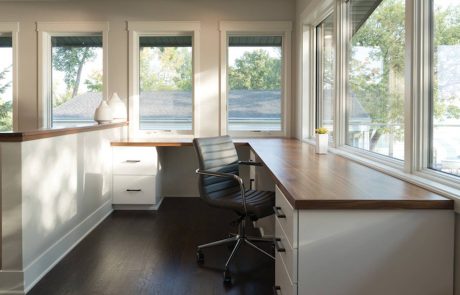

Andersen’s best-selling awning window provides a blend of engineering and craftsmanship. Windows from the 400-Series are made of wood with vinyl exteriors.
The wood is treated with water-repellant to for long-lasting protection and the exterior vinyl is an additional layer of protection against water damage and other outside elements.
- Wood core provides excellent structural stability and energy efficiency
- The smooth control hardware system employs a worm gear drive for easy operation
- Owner-2-Owner Limited Warranty Windows Made in the USA
- Awning sash locks provide an added measure of security and weather-tightness
- Standard sizes up to 6' wide and 3' high, custom sizes available
Interior Color
White
Black
Dark Bronze
Pine
Exterior Color
White
Canvas
Sandtone
Terratone
Forest Green
Dark Bronze
Black
*Black and Dark Bronze interiors are available only with Black and Dark Bronze exteriors respectively.
Hardware Finishes
Hardware Styles
Traditional Folding Lock & Keeper
Antique Brass, Black, Bright Brass, Distressed Bronze, Distressed Nickel, Gold Dust, Oil Rubbed Bronze, Satin Nickel, Stone, White *Distressed Bronze finish pictured
Contemporary Folding Lock & Keeper
Black, Bright Brass, Gold Dust, Oil Rubbed Bronze, Satin Nickel, Stone, White *Satin Nickel finish pictured
Estate Lock & Keeper
Antique Brass, Bright Brass, Brushed Chrome, Distressed Bronze, Distressed Nickel, Oil Rubbed Bronze, Polished Chrome, Satin Nickel *Antique Brass finish pictured
Classic Series Lock & Keeper
Stone, White *Stone finish pictured
Grille Types
Full Divided Light
Grilles applied to the interior and exterior of the window with aluminum spacers between the glass create an authentic look.
Spacer Option for Greater Energy Efficiency
The Energy Spacer option is available to help A-Series products with full divided lights and SmartSun™ glass be ENERGY STAR® certified in the Northern climate zone. Its narrow design creates a 3mm gap around the spacer, helping to lower U-Factor values.
Simulated Divided Light
Style your window with permanent exterior grilles and choose between permanent or removable interior grilles.
Removable Interior Grille
For easy cleaning choose removable interior grilles. Secured via a fastener or grille clip, these can be removed easily.
Finelight Grilles Between-the-Glass
Grilles sit between the panes of glass for easy cleaning.
Grille Patterns
Prairie
Diamond
Colonial
Custom Patterns
Glass
SmartSun™ Glass
SmartSun™ glass gives you the benefits of Low-E glass, plus it helps shield your home from the sun’s heat by filtering out harmful UV rays.
Ideal for: All Climates
SmartSun™ with HeatLock Coating is also available on 100 Series windows. This prevents more heat from escaping your home but slightly reduces the visible light transmitted through the glass.
Low-E Glass
Low-E Glass reflects heat in the summer and helps to retain interior heat in the winter.
Ideal for: All Climates
Low-E with HeatLock Coating is also available on 100 Series windows. This improves the U-Factor performance of the window but slightly reduces how much light comes through the glass.
Sun Glass
Sun glass has excellent thermal performance. This glass has a subtle tint that blocks out more heat from the sun.
Ideal for: Southern Climates
Clear Dual-Pane Glass
Clear dual-pane glass, which offers basic thermal performance, is in situations where codes allow its use. In North Texas, clear-dual pane glass does not meet energy code.
See local code official for requirements in your area.
HeatLock® Technology
HeatLock® coating reflects heat that likes to escape your home through window glass. It can be added to most of Andersen’s glass options.
Decorative and Specialty Glass
Safety Glass
Tempered safety glass is available on all products, and comes standard on all patio doors.
Laminated Glass
Laminated glass is also available, for added strength, enhanced security and sound control.
Sound-Reducing Glass
This glass helps reduce the volume of outside noise. Available with Low-E, SmartSun and HeatLock coatings.
Patterned Glass
Let in light while obscuring vision and adding a unique decorative touch to your home.
Art Glass
Classic Series
The four styles included in our Classic Series panels represent major architectural design themes from the late 1800’s through the 1930’s. Their symmetric patterns are available in distinctive color schemes as well as colorless glass, and their caming may be finished with a gold tone, silver tone or antique patina.
Artisan Series
Historic Series
Screen Options
Conventional Insect Screen
Conventional insect screens have charcoal powder-coated aluminum screen mesh. Available with frames in White or Stone.
TruScene® Insect Screen
Exclusive Andersen TruScene® insect screens provide over 50% more clarity than our conventional insect screens for a beautiful unobstructed view. They allow more fresh air and sunlight in, while doing a better job of keeping out small insects. For casement and awning windows, frames are available in White, Stone or Gold Dust as well as all interior painted options, six wood veneers and six stain colors to match the interior finish.
Exterior Trim
Exterior trim adds a finishing touch to your windows or doors and is often essential in achieving authentic architectural style. You can match the color of your windows or doors, or complement them with a different color.
Trim Colors
White
Canvas
Sandtone
Terratone
Forest Green
Dark Bronze
Black
Cocoa Bean
Red Rock
Prairie Grass
Dove Gray
Trim Styles
2" Brick Mould
3.5" Flat
4.5" Flat
Head Trim Profiles
Decorative Drip Cap
2" Cornice
3 5/8" Cornice
As soon as we finished the installation of our Andersen 400 Series we noticed an instant difference in the cooling of our home. Also the outside noise was significantly reduced. My wife and I truly enjoy our new windows.
— MRD57, Review from AndersenWindows.com
Product Specs
| Brand | Andersen |
|---|---|
| Series | 400-Series |
| Interior Color | Pine, White, Dark Bronze, Black |
| Exterior Color | White, Canvas, Sandtone, Terratone, Forest Green, Dark Bronze, Black |
| Composition | Wood, Vinyl |
| Uniform Sight Lines | Yes |
| Extension Jambs | Standard jamb depth is 2 7/8″. Extensions jambs are available in unfinished pine or prefinished white. Some sizes may be veneered. |
| Translucent Film | Yes |
| Construction Type | Build, Remodel, Replace |
| Security Sensors | Yes. Verilock sensors are available in five colors. Wireless open/closed sensors are available in four colors. |
| Custom Sizes | Yes. Available in custom sizes to fit most projects, including replacement. |
|---|---|
| Sizing | Measured in 1/8″ increments |
| Minimum Width | 17″ |
| Maximum Width | 84 5/8″ |
| Minimum Height | 24 1/8″ |
| Maximum Height | 71 7/8″ |
| Jamb Depth | 4 9/16″ |
| Sash Construction | Flexible bulb weatherstripping or vinyl closed-cell foam weatherstripping is factory installed on the perimeter of the sash. |
| Power Operator Available | No |
| Energy Star Certification | Yes |
|---|---|
| NFRC Ratings | Yes |
| WDMA Hallmark Certification | Yes |
| AAMA Certification | Yes |
| Glass Warranty | 20 Years |
| Glass-Breakage Warranty | No |
| Non-Glass Warranty | 10 Years |
| Labor Warranty | No |
| Window Opening Control Device | Yes |
| Stormwatch Protection Available | Yes. Available for new construction windows only. |
